Marine Generator - Comprehensive Range for All Marine Needs

Large Ratio Advance HCT1400 Marine Gearbox

Large Ratio Advance HCT1400 Marine Gearbox

Reduction ratio	4,4.511,5.03,5.52,5.97,6.48, 7.03,7.50,8.01,8.465,8.593, 8.984,9.118,9.552
Input speed	600-1800r/min
L×W×H	1306x1380x1750mm
Net weight	3700kg
Flywheel	Depend on engine flywheel

The Marine Gearbox HCT1400 boasts a range of capabilities including speed reduction, forward and reverse clutching, and propeller thrust bearing, making it suitable for various nautical operations and providing comprehensive performance support.

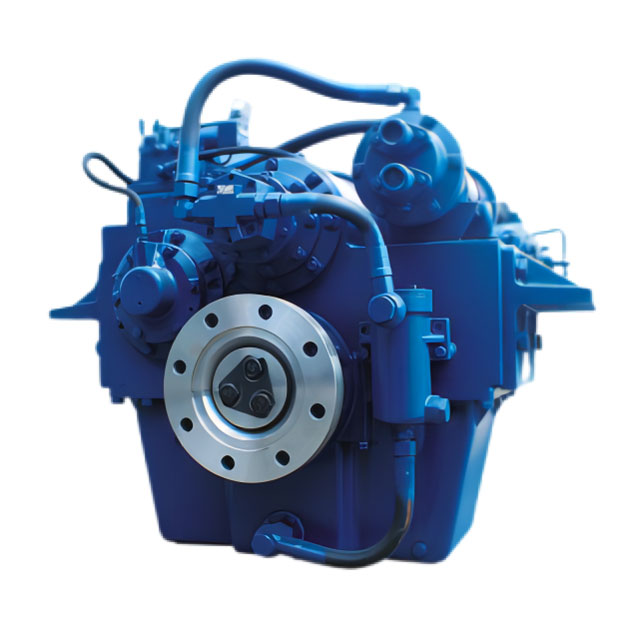

FADA Marine Gearbox J600A

FADA Marine Gearbox J600A

Reduction Ratio	2.18,2.48,3.00,3.58,3.89
Engine speed range	1000~1800rpm
Center Distance	320mm
Weight	1200kg

Operation mode: push and pull flexible shaft, electric control
input when driving Shaft and output shaft steering: opposite

Advance MB242 Marine Gearbox

Advance MB242 Marine Gearbox

Reduction Ratio	2.00、2.54、3.04、3.52、3.95 4.53、5.12、5.56、5.88
Input speed	1000-2500r/min
Center Distance	242mm
Weight	385kg
Size(mm)	442×774×763mm

Advance MB242 Marine Gearbox, designed for medium and small boats, offers compact dimensions and lightweight construction for effortless installation and handling. Its vertically offset, one-stage transmission ensures smooth operation and efficient power transmission.

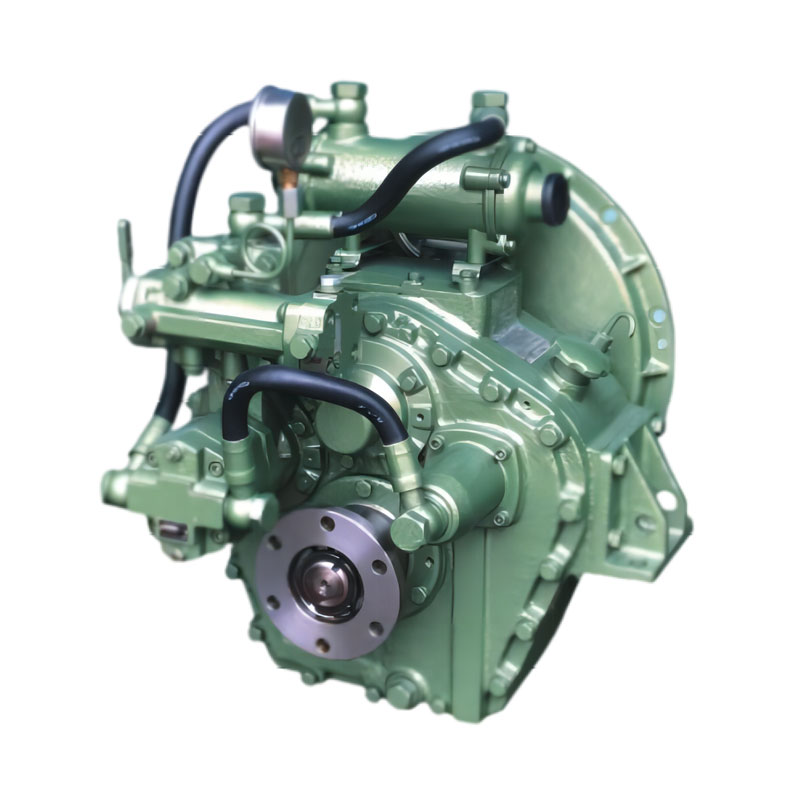

FADA Marine Gearbox D145

FADA Marine Gearbox D145

Reduction Ratio	3.04,3.62,4.11,4.65, 5.06,5.47,5.81
Engine speed range	750-2000rpm
Center Distance	225mm
Weight	336kg

Operation mode: push-pull flexible shaft, electric control
Steering direction of input shaft and output shaft during driving: opposite

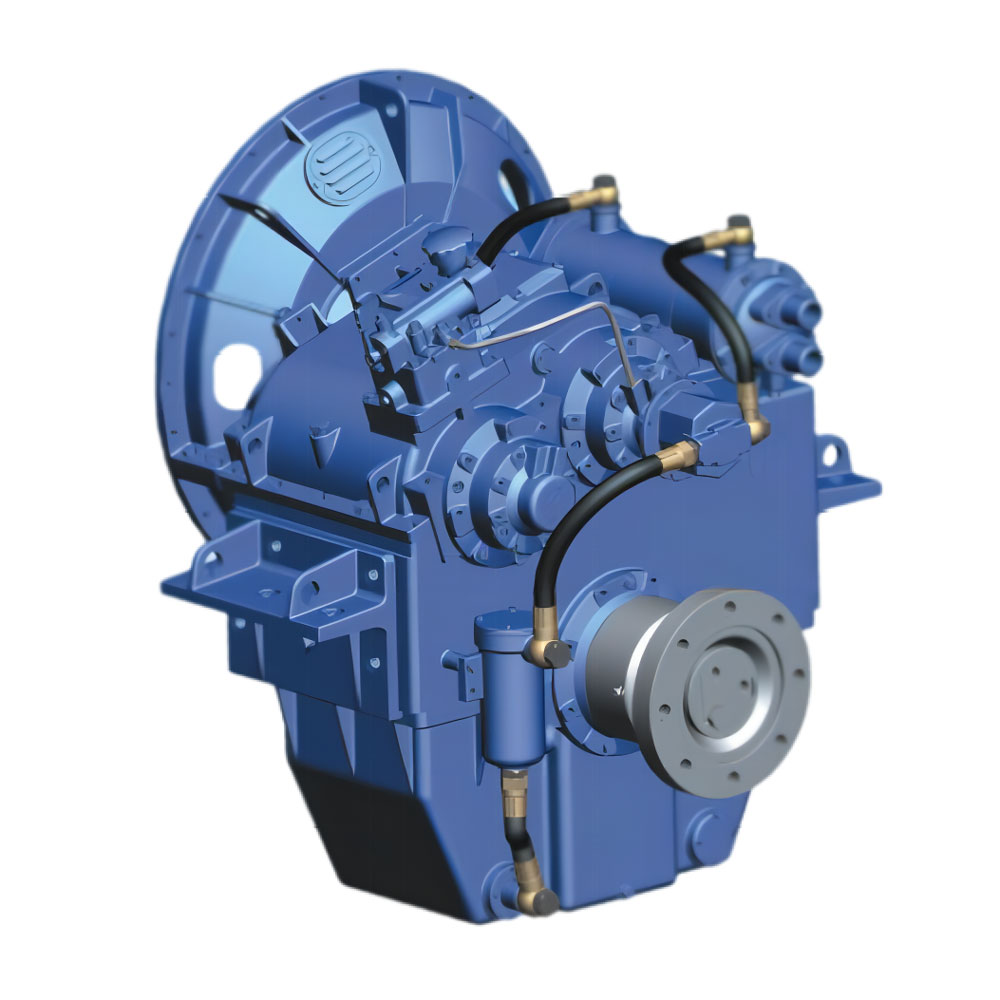

FADA Marine Gearbox JD700

FADA Marine Gearbox JD700

Reduction Ratio	4.18:1,4.43:1,5.00:1, 5.44:1,6.05:1
Engine speed range	1000~2100rpm
Center Distance	415mm
Weight	1320kg

Operation mode: push-pull flexible shaft, electric control
Steering direction of input shaft and output shaft during driving: opposite

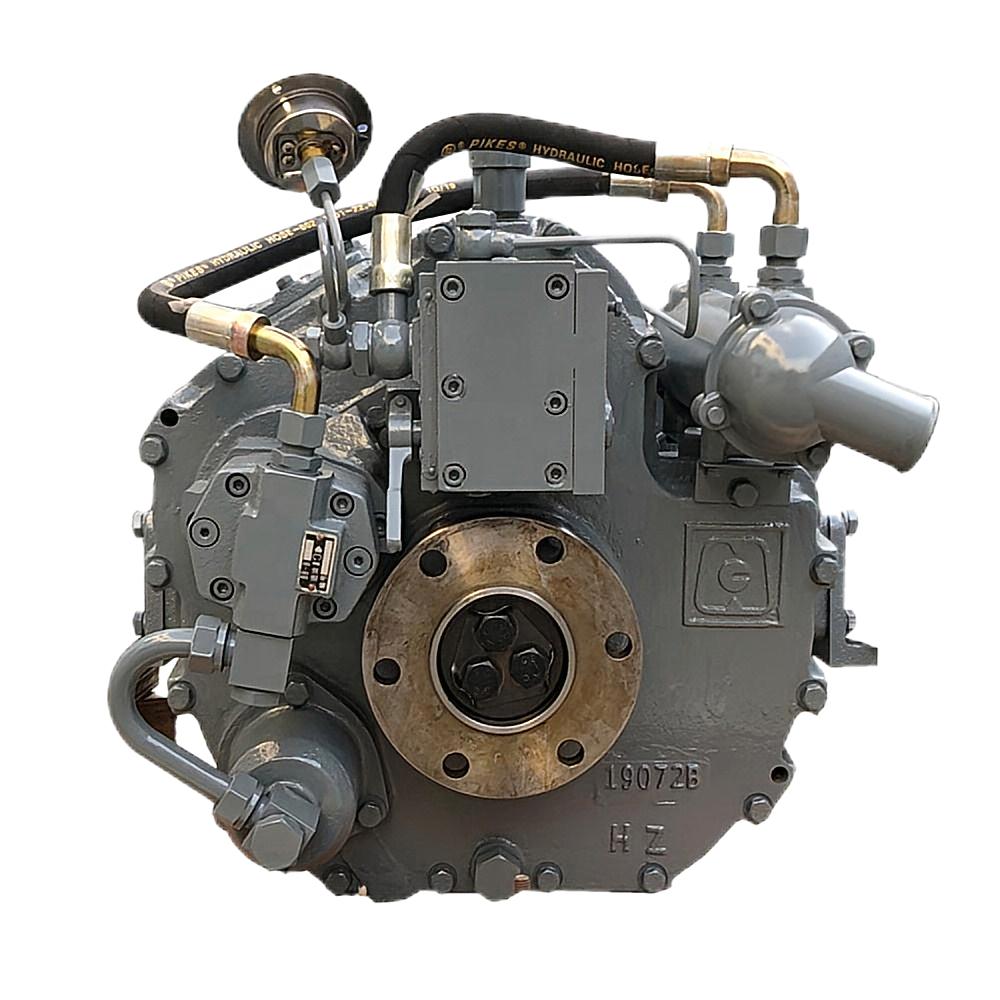

Advance MV100A Marine Gearbox

Advance MV100A Marine Gearbox

Reduction Ratio	1.23 1.62 2.07 2.52 2.87
Max power input	408hp 3000rpm
Engine speed range	1500-3000rpm
Center Distance	225mm
Weight	220kg
Size(mm)	390630580

Advance MV100A Marine Gearbox boasts a vertically offset, one-stage transmission for seamless speed reduction and clutching, ideal for a range of marine vessels.
With its compact design and multiple reduction ratios, the Advance MV100A Marine Gearbox offers powerful yet efficient performance, making it the perfect choice for fishing, transport, and passenger boats.

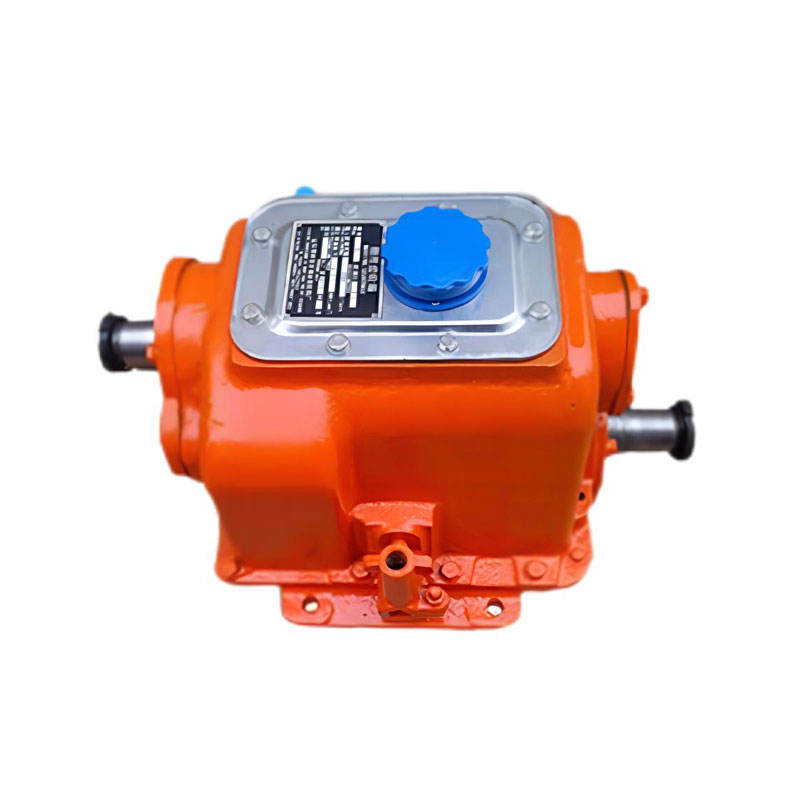

Advance HC16A Marine Gearbox

Advance HC16A Marine Gearbox

Reduction Ratio	2.07、2.48、2.95、3.35、3.83
Engine speed range	1000-2000rpm
Center Distance	135mm
Weight	84kg
Size(mm)	422×325×563mm

Compact and lightweight design, ideal for small fishing, transport, and rescue boats. Offers agile control for efficient and stable navigation.
Equipped with functions for speed reduction, forward and reverse clutching, and propeller thrust bearing. Mechanically controlled for ease of operation, ensuring safe vessel navigation.

Advance 40A Marine Gearbox

Advance 40A Marine Gearbox

Rated thrust	8.8KN
Center distance	142mm
L×W×H	490×670×620mm
Net weight	225kg
Flywheel	4110C、SAE14、11.5
Bell housing	4110C、SAE1、2、3

Marine Gearbox 40A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume and light in weight.

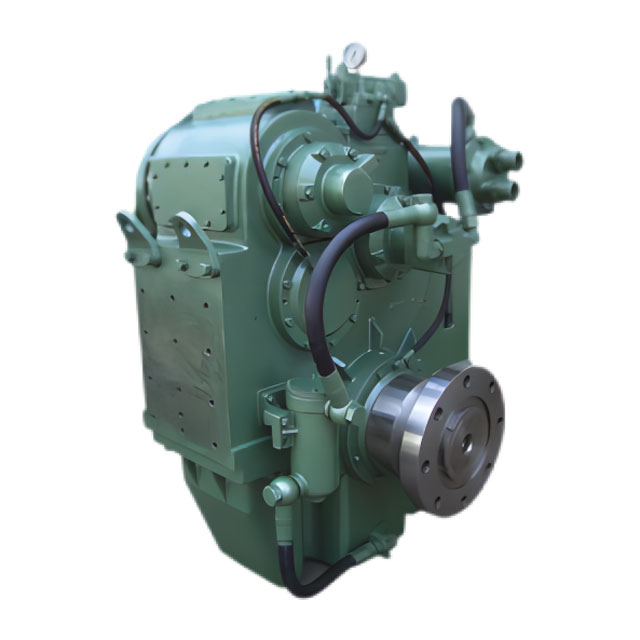

FADA Marine Gearbox JT450/1

FADA Marine Gearbox JT450/1

Reduction Ratio	8.0745,8.6104,9.1973,9.8429, 10.4675,11.2263,11.8500,12.4737, 13.5000,14.2105
Engine speed range	1000~2100rpm
Center Distance	465mm
Weight	1560kg

Operation mode: push and pull flexible shaft, electric control
input when driving Shaft and output shaft steering: opposite
