Founded in 1951, YUCHAI Group is located in Yulin, Guangxi, known as the “Lingnan Metropolis”. It is China’s largest internal combustion engine production base , and a large and medium-sized construction machinery production and export base in China.

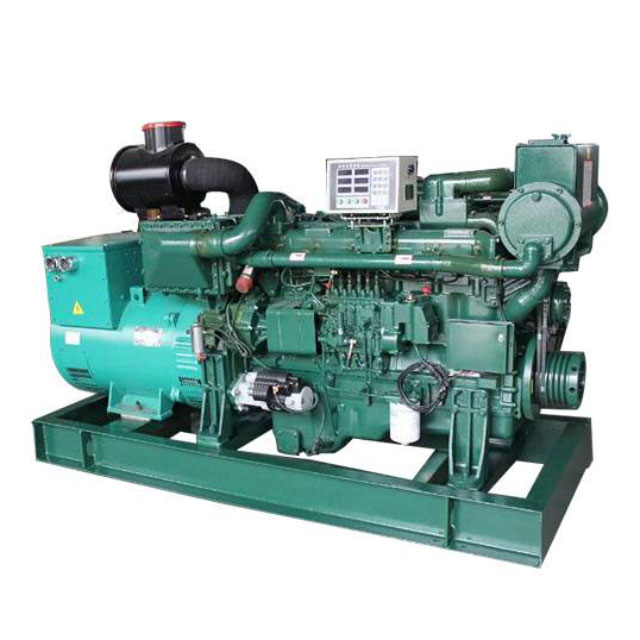

YUCHAI Marine Power Series diesel engines include YC6C, YC6T, YC6M, YC6A, YC6B, YC6108, YC6105, YC4D, YC4F nine series, power coverage from 32KW to 880KW, low fuel consumption, low vibration, low noise, high reliability, strong power, exquisite product structure, reliable quality, and various technical performance indicators reach the current international advanced level. It is an ideal supporting power for speed boats, cargo ships, passenger ships and fishing boats.
Product advantages
1. Choose high pressure oil pump, fuel injection pressure is high, and fuel consumption index is far superior to domestic products with the same power range.
2. Adopt YUCHAI proprietary piston ring sealing technology, the lubricant consumption is more than 50% lower than that of domestic products with the same power range.
3. Through full electronic control and high-pressure common rail to flexibly control fuel injection and exhaust valve drive, effectively reduce operating costs, and can well meet the requirements of emission regulations in different stages.
4. Compact structure design, with high output power and excellent environmental protection performance under the case of the same displacement, safe and reliable operation, high efficiency and energy saving.
5. The body and cylinder head are made of alloy cast iron, which has a high degree of strengthening. It adopts an overall crankshaft and slide bearings, which are small in size, light in weight, and high in reliability. The engine overhaul period under normal use and maintenance can be greater than 10,000 hours.
6. The optimized power and speed are widely applicable to various sizes and types of bulk carriers, container ships, oil tankers and engineering ships etc.
50Hz/1500rpm
■ CCS,BV,BKI CLASS CERTIFICATE
■ IMO EMISSION CERTIFICATE
■ STAMFORD,LEROY-SOMER,MARATHON MARINE ALTERNATOR AS OPTIONAL
■ HEAT EXCHANGER COOLED AND KEEL COOLEDAS OPTIONAL
Generator spec. |
Engine Spec. |
Dimensions |
Weight |
||||
Model |
Rated power |
Frenquency /voltage |
Engine model |
Power/Speed |
|||
kW/RPM |
L×W×H(mm) |
(Kgs) |
|||||
KW |
KVA |
Hz/ V |
|||||
CCFJ30J-WTP |
30 |
37.5 |
50/400 |
YC4108C |
40/1500 |
1780*780*1035 |
750 |
CCFJ40J-WTP |
40 |
50 |
50/400 |
YC4108ZC |
50/1500 |
1850*780*1035 |
785 |
CCFJ50J-WTP |
50 |
62.5 |
50/400 |
YC6108CA |
63/1500 |
1900*820*1080 |
1130 |
CCFJ64J-WTP |
64 |
80 |
50/400 |
YC6108ZC |
80/1500 |
2100*8201080 |
1260 |
CCFJ90J-WTP |
90 |
113 |
50/400 |
YC6108ZLCB |
112/1500 |
2300*850*1280 |
1400 |
CCFJ100J-WTP |
100 |
125 |
50/400 |
YC6B165L-C22 |
120/1500 |
2300*850*1280 |
1355 |
CCFJ120J-WTP |
120 |
150 |
50/400 |
YC6A200L-C20 |
145/1500 |
2365*960*1420 |
1450 |
CCFJ150J-WTP |
150 |
188 |
50/400 |
YC6MK240L-C22 |
176/1500 |
2700*1100*1700 |
2230 |
CCFJ160J-WTP |
160 |
200 |
50/400 |
YC6MK260L-C22 |
192/1500 |
2700*1100*1700 |
2230 |
CCFJ180J-WTP |
180 |
225 |
50/400 |
YC6MK300L-C22 |
220/1500 |
2750*1100*1700 |
2550 |
CCFJ200J-WTP |
200 |
250 |
50/400 |
YC6MK330C |
240/1500 |
2750*1100*1700 |
2550 |
CCFJ220J-WTP |
220 |
275 |
50/400 |
YC6K365L-C20 |
268/1500 |
2550*1050*1500 |
2550 |
CCFJ250J-WTP |
250 |
313 |
50/400 |
YC6MJ400L-C22 |
295/1500 |
2830*1110*1750 |
2750 |
CCFJ250J-WTP |
250 |
313 |
50/400 |
YC6T400C |
295/1500 |
3000*1100*2160 |
3290 |
CCFJ280J-WTP |
260 |
350 |
50/400 |
YC6K420L-C20 |
309/1500 |
2650*1050*1500 |
2700 |
CCFJ280J-WTP |
280 |
350 |
50/400 |
YC6T450C |
330/1500 |
3000*1100*2160 |
3290 |
CCFJ300J-WTP |
300 |
375 |
50/400 |
YC6T490C |
360/1500 |
3100*1100*2160 |
3420 |
CCFJ360J-WTP |
350 |
437.5 |
50/400 |
YC6TD600L-C20 |
441/1500 |
3300*1050*1500 |
3750 |
CCFJ400J-WTP |
400 |
500 |
50/400 |
YC6TD655L-C20 |
480/1500 |
3300*1050*1500 |
3940 |
CCFJ480J-WTP |
480 |
600 |
50/400 |
YC6C760L-C20 |
560/1500 |
4500*1400*2100 |
6950 |
CCFJ500J-WTP |
500 |
625 |
50/400 |
YC6C820L-C21 |
600/1500 |
4500*1400*2100 |
7100 |
CCFJ600J-WTP |
600 |
750 |
50/400 |
YC6C980L-C20 |
720/1500 |
4500*1400*2100 |
7300 |
CCFJ960J-WTP |
960 |
1200 |
50/400 |
YC12VC1512L-C21 |
1120/1500 |
5160*1644*2218 |
12800 |
CCFJ1436J-WTP |
1436 |
1795 |
50/400 |
YC12VC2430L-C21 |
1800/1500 |
5160*1644*2218 |
13500 |
CCFJ1500-WTP |
1500 |
1875 |
50/400 |
YC16VC2700L-C21 |
2000/1500 |
5945*1644*2218 |
15800 |
CCFJ1750-WTP |
1750 |
2188 |
50/400 |
YC16VC2970L-C21 |
2200/1500 |
5945*1644*2218 |
16300 |
60Hz/1800rpm
■ CCS,BV,BKI CLASS CERTIFICATE
■ IMO EMISSION CERTIFICATE
■ STAMFORD,LEROY-SOMER,MARATHON MARINE ALTERNATOR AS OPTIONAL
■ HEAT EXCHANGER COOLED AND KEEL COOLEDAS OPTIONAL
Generator spec. |
Engine Spec. |
Dimensions |
Weight |
||||
Model |
Rated power |
Frenquency/voltage |
Engine model |
Power/Speed |
|||
kW/RPM |
L×W×H(mm) |
(Kgs) |
|||||
KW |
KVA |
Hz/ V |
|||||
CCFJ40J-WTP |
40 |
50 |
60/440 |
YC4D75C |
55/1800 |
1780*750*1065 |
790 |
CCFJ64J-WTP |
64 |
80 |
60/440 |
YC6B100-C20 |
74/1800 |
1900x850x1000 | 1280 |
CCFJ90J-WTP |
90 |
113 |
60/440 |
YC6B150C |
110/1800 |
1940*750*1125 |
1285 |
CCFJ100J-WTP |
100 |
125 |
60/440 |
YC6B150C |
110/1800 |
1900*750*1000 |
1300 |
CCFJ120J-WTP |
120 |
150 |
60/440 |
YC6A190C |
140/1800 |
1900*860*1000 |
1900 |
CCFJ150J-WTP |
150 |
187.5 |
60/440 |
YC6MK240L-C23 |
176/1800 |
2285*1122*1420 |
1960 |
CCFJ180J-WTP |
180 |
225 |
60/440 |
YC6MK300L-C20 |
219/1800 |
2465*1122*1420 |
2050 |
CCFJ200J-WTP |
200 |
250 |
60/440 |
YC6T390C |
287/1800 |
2930*1150*1850 |
2950 |
CCFJ220J-WTP |
216 |
270 |
60/440 |
YC6T390C |
287/1800 |
2930*1150*1850 |
3040 |
CCFJ250J-WTP |
250 |
313 |
60/440 |
YC6T390C |
287/1800 |
2930*1150*1850 |
3050 |
CCFJ270J-WTP |
280 |
350 |
60/440 |
YC6T420C |
3091800 |
2850*1150*1850 |
3200 |
CCFJ300J-WTP |
300 |
375 |
60/440 |
YC6T480C |
352/1800 |
2850*1150*1850 |
3280 |
CCFJ320J-WTP |
320 |
400 |
60/440 |
YC6T510C |
375/1800 |
2850*1150*1850 |
3300 |
CCFJ350J-WTP |
350 |
437.5 |
60/440 |
YC6T540C |
396/1800 |
3085*1150*1850 |
3500 |
CCFJ400J-WTP |
400 |
500 |
60/440 |
YC6TD650L-C20 |
478/1800 |
3100*1250*1960 |
3700 |
CCFJ450J-WTP |
450 |
562.5 |
60/440 |
YC6TD700L-C20 |
515/1800 |
3100*1250*1960 |
3750 |
