FADA Marine Gearbox - High-Performance Transmission Solutions for Marine Applications

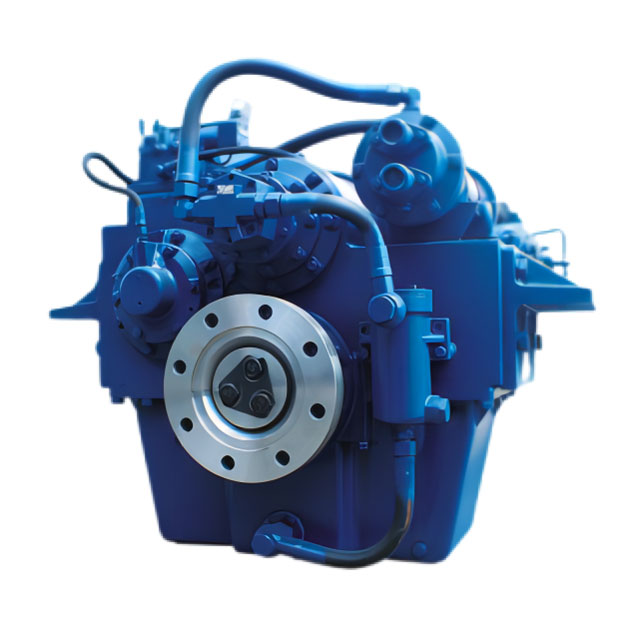

FADA Marine Gearbox J600A

FADA Marine Gearbox J600A

Reduction Ratio	2.18,2.48,3.00,3.58,3.89
Engine speed range	1000~1800rpm
Center Distance	320mm
Weight	1200kg

Operation mode: push and pull flexible shaft, electric control
input when driving Shaft and output shaft steering: opposite

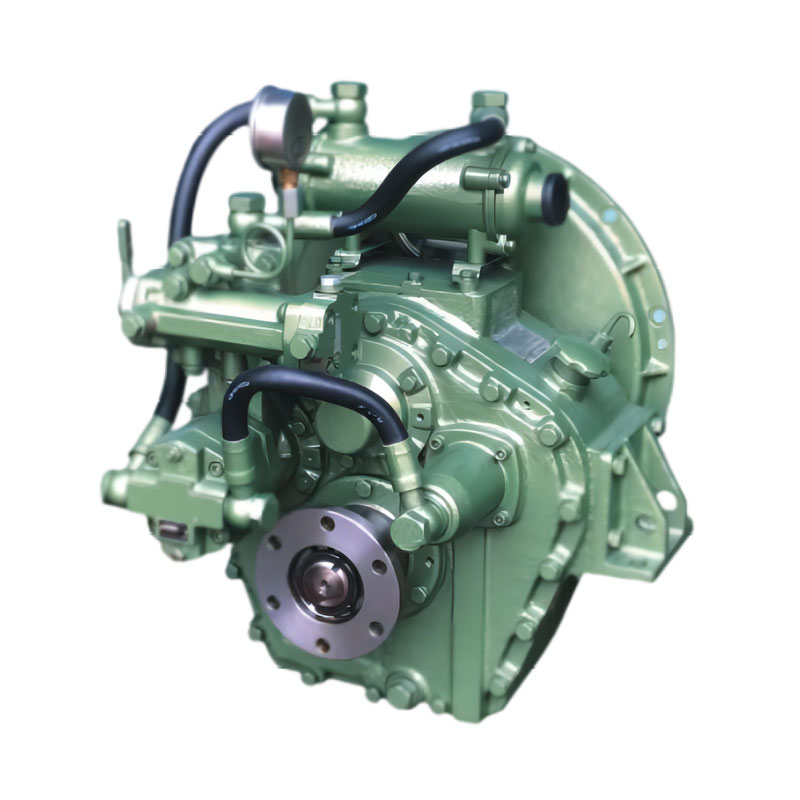

FADA Marine Gearbox D145

FADA Marine Gearbox D145

Reduction Ratio	3.04,3.62,4.11,4.65, 5.06,5.47,5.81
Engine speed range	750-2000rpm
Center Distance	225mm
Weight	336kg

Operation mode: push-pull flexible shaft, electric control
Steering direction of input shaft and output shaft during driving: opposite

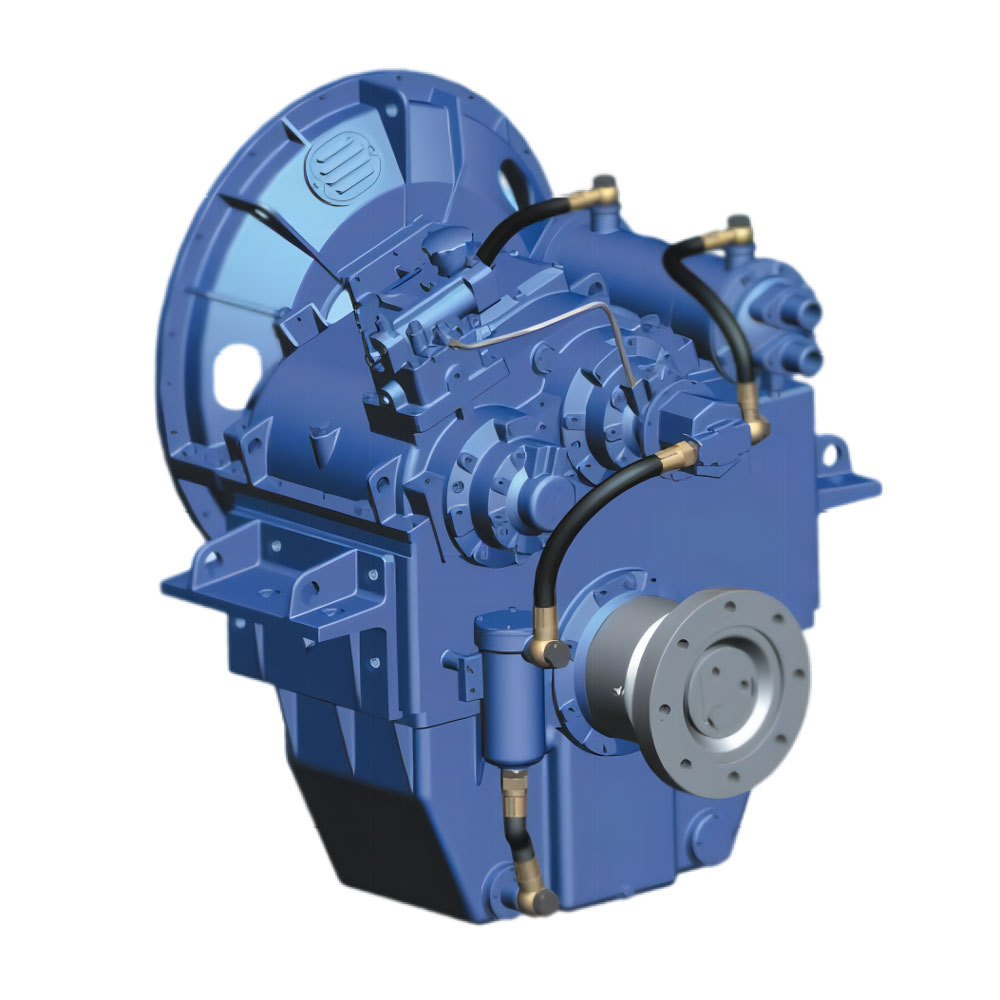

FADA Marine Gearbox JD700

FADA Marine Gearbox JD700

Reduction Ratio	4.18:1,4.43:1,5.00:1, 5.44:1,6.05:1
Engine speed range	1000~2100rpm
Center Distance	415mm
Weight	1320kg

Operation mode: push-pull flexible shaft, electric control
Steering direction of input shaft and output shaft during driving: opposite

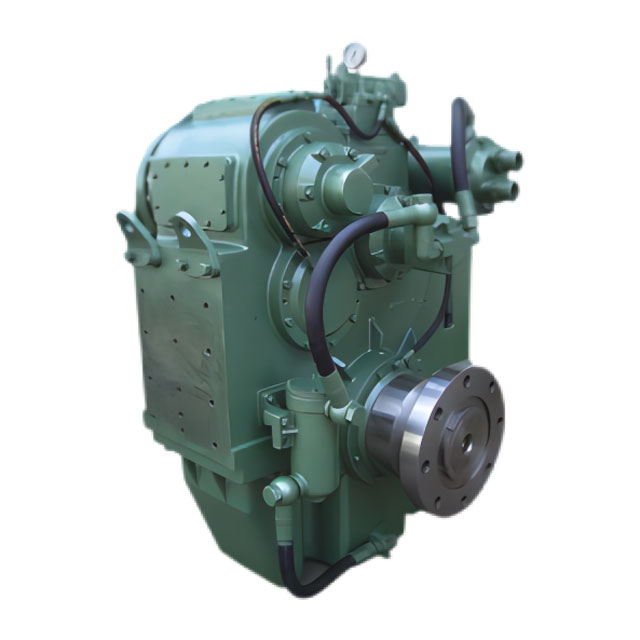

FADA Marine Gearbox JT450/1

FADA Marine Gearbox JT450/1

Reduction Ratio	8.0745,8.6104,9.1973,9.8429, 10.4675,11.2263,11.8500,12.4737, 13.5000,14.2105
Engine speed range	1000~2100rpm
Center Distance	465mm
Weight	1560kg

Operation mode: push and pull flexible shaft, electric control
input when driving Shaft and output shaft steering: opposite

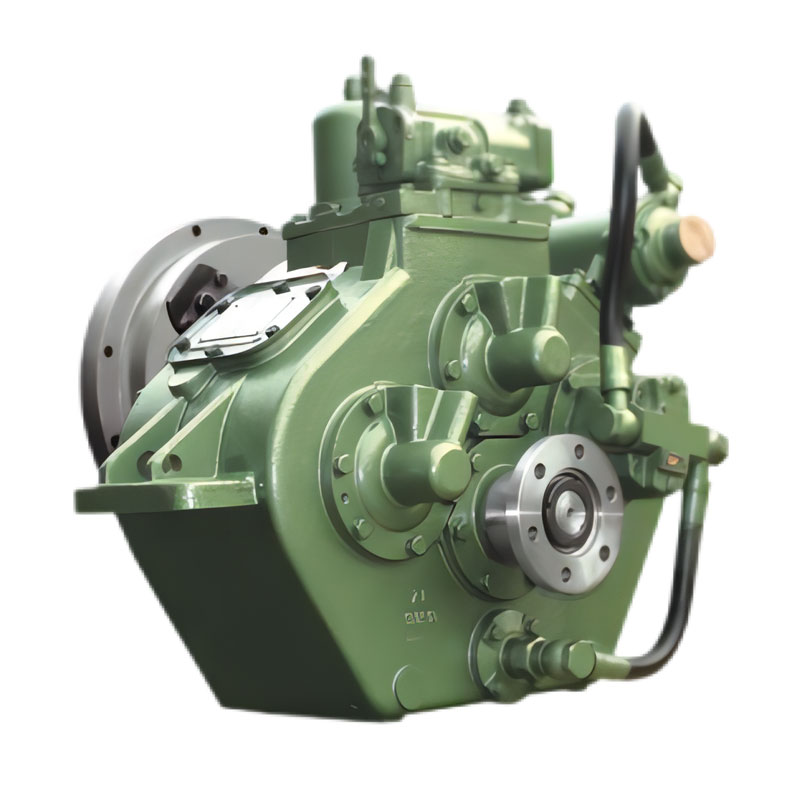

FADA Marine Gearbox FD40A

FADA Marine Gearbox FD40A

Reduction Ratio	2.07,2.68,2.96,3.60
Engine speed range	750~2000rpm
Center Distance	142mm
Weight	230kg

Operation mode: input when pushing and pulling the flexible shaft
Shaft and output shaft steering: opposite

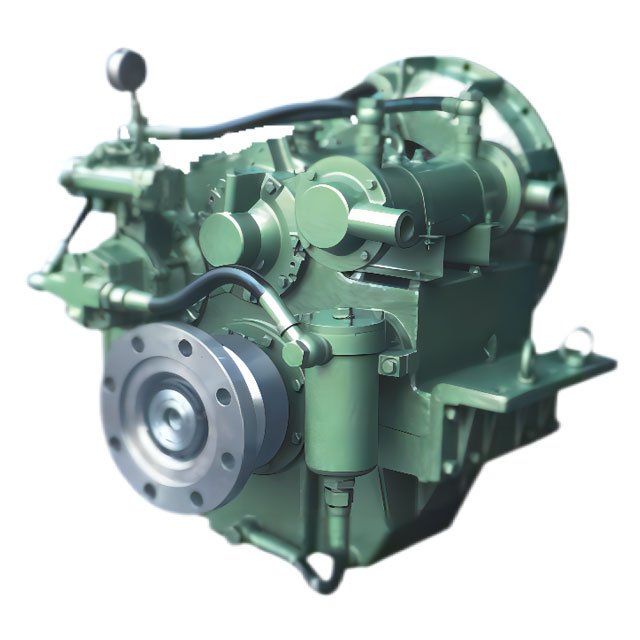

FADA Marine Gearbox FD450

FADA Marine Gearbox FD450

Reduction Ratio	2.04,2.50,3.00,3.42,4.06
Engine speed range	1000~2100rpm
Center Distance	264mm
Weight	660kg

Operation mode: push-pull flexible shaft, electric control
Steering direction of input shaft and output shaft during driving: opposite

FADA Marine Gearbox FD300

FADA Marine Gearbox FD300

Reduction Ratio	2.04,2.54,3.00,3.53, 4.10, 4.47, 5.00, 5.44
Engine speed range	750-2500rpm
Center Distance	264mm
Weight	720kg

Operation mode: push-pull flexible shaft, electric control
Steering direction of input shaft and output shaft during driving: opposite
