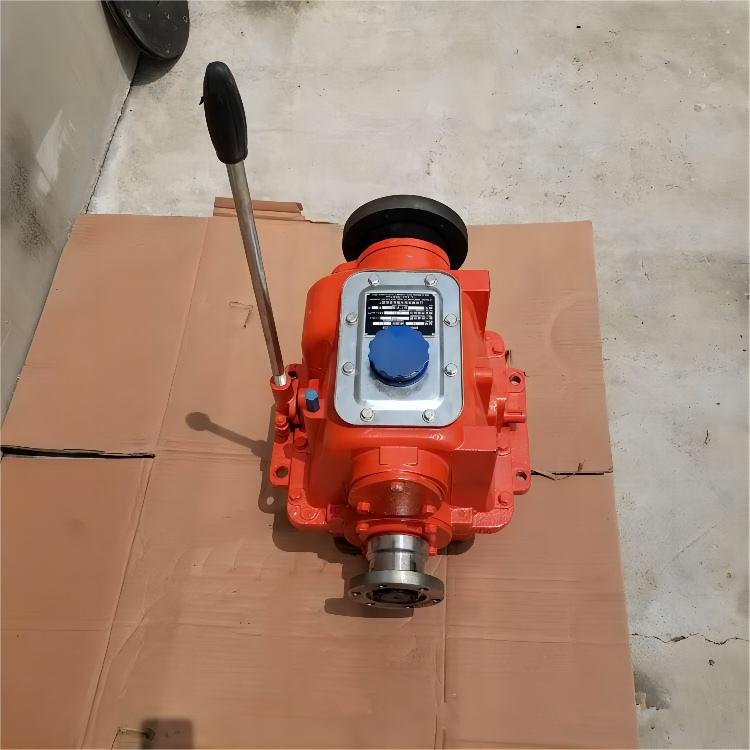

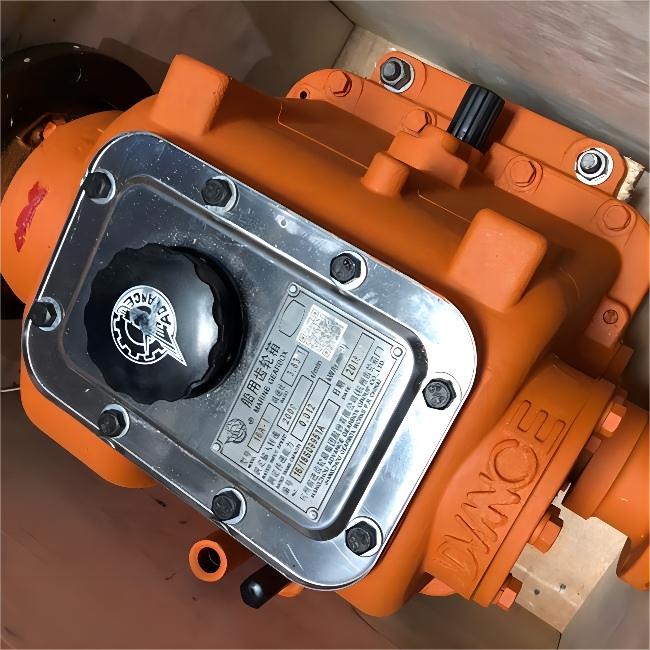

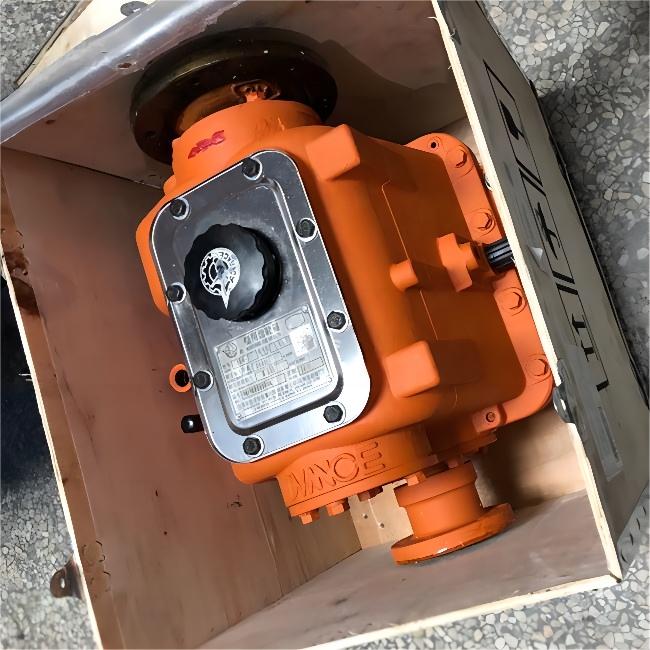

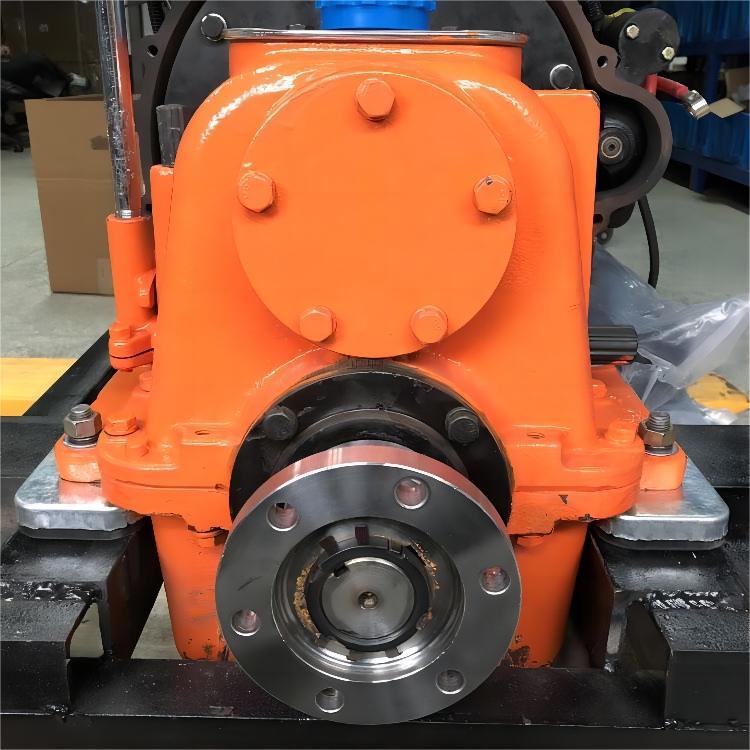

Advance HC16A Marine Gearbox
    Reduction Ratio 2.07、2.48、2.95、3.35、3.83
    Engine speed range 1000-2000rpm
    Center Distance 135mm
    Weight 84kg
    Size(mm) 422×325×563mm
    • Compact and lightweight design, ideal for small fishing, transport, and rescue boats. Offers agile control for efficient and stable navigation.
    • Equipped with functions for speed reduction, forward and reverse clutching, and propeller thrust bearing. Mechanically controlled for ease of operation, ensuring safe vessel navigation.

Description

Marine Gearbox 16A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is mechanically controlled, featuring in small in volume and light in weight.

Main Parameters

Input speed 1000-2000r/min
Reduction ratio 2.07、2.48、2.95、3.35、3.83 Trans. capacity 0.012kw/r/min
Control way Manually
Rated thrust 3.5KN
Center distance 135mm
L×W×H 422×325×563mm
Net weight 84kg
Flywheel 2105C 395、SAE11.5、10
Bell housing 2105C 395、SAE3、4

Application

Marine Gearbox 16A is suitable for small fishing, transport, and rescue boats.
