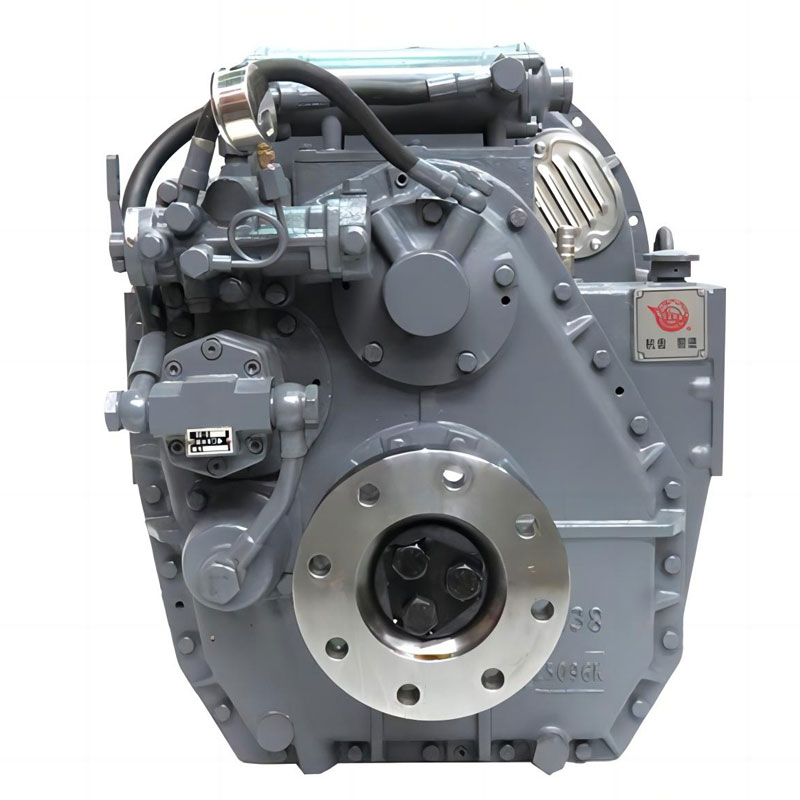

Advance HC138 Marine Gearbox
    Reduction Ratio 2.0,2.52,3.00,3.57,4.05,4.45
    Input speed 1000-2500r/min
    Center Distance 225mm
    Weight 360kg
    Size(mm) 520×792×760mm
    • Advance HC138 Marine Gearbox offers a compact design with a high reduction ratio, perfect for mid-sized boats seeking powerful yet efficient transmission.
    • Featuring vertically offset, one-stage transmission, the Advance HC138 Marine Gearbox combines speed reduction, clutching, and thrust bearing functions, ideal for a wide range of marine applications.

Description

Marine Gearbox HC138 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume and large in ratio.

Main Data

Input speed 1000-2500r/min
Reduction ratio 2.0,2.52,3.00,3.57,4.05,4.45 Trans. capacity 0.110kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 30KN
Center distance 225mm
L×W×H 520×792×760mm
Net weight 360kg
Flywheel 6135Ca,SAE14,11.5
Bell housing 6135Ca,SAE1,2,3

Applications

Marine Gearbox HC138 is suitable for medium and small fishing, transport, tug, traffic and passenger boats.
