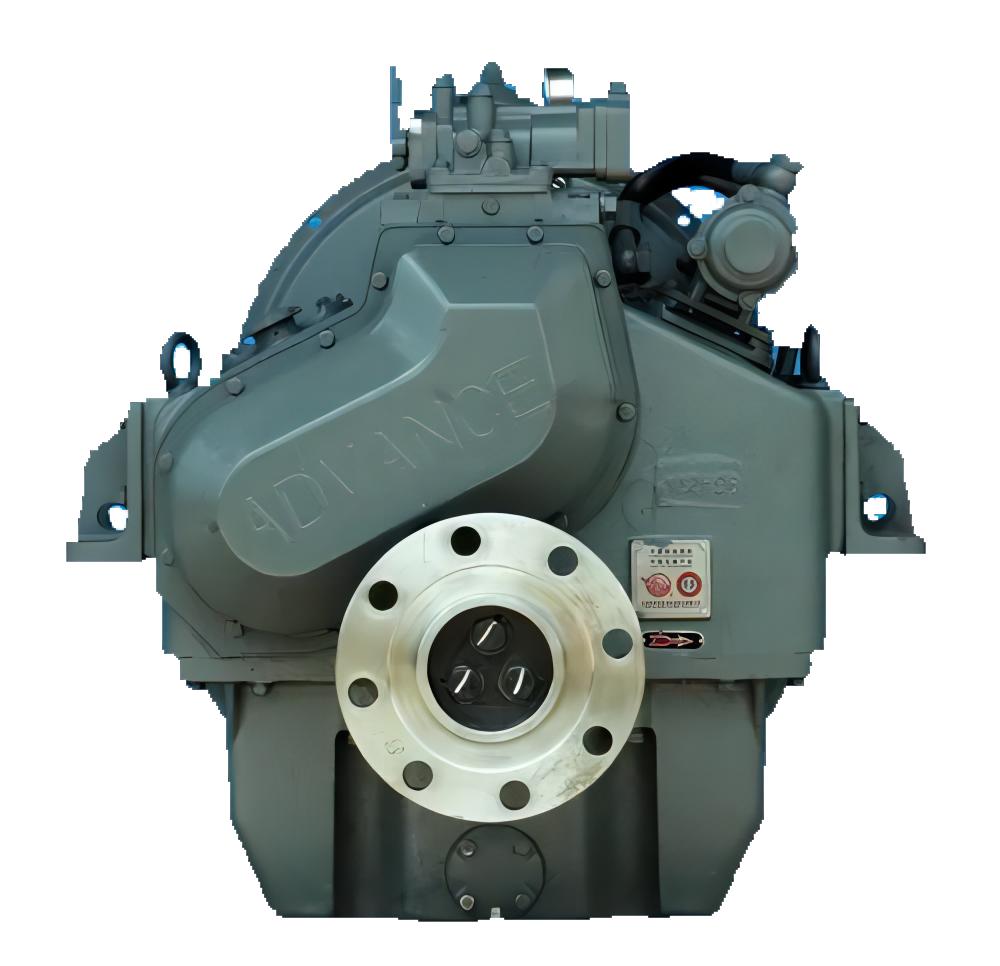

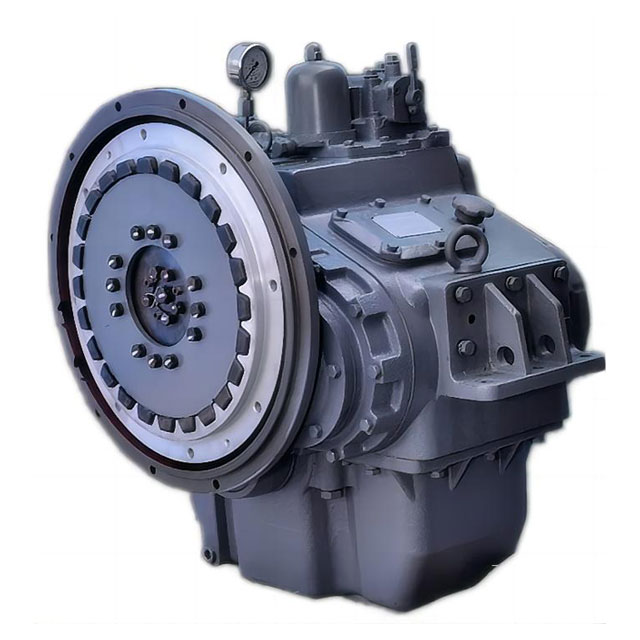

Advance 135A Marine Gearbox
    Reduction Ratio 2.03 2.59 3.04 3.62 4.11 4.65 5.06 5.47 5.81
    Max power input 272hp 2000rpm
    Engine speed range 1000-2000rpm
    Center Distance 225mm
    Weight 470kg
    Size(mm) 578*744*830
    • Advance 135A Marine Gearbox offers a compact and lightweight design, perfect for small marine vessels seeking efficient and reliable transmission.
    • With its vertically offset, one-stage transmission and easy dismantle & reassemble features, the Advance 135A Marine Gearbox simplifies maintenance while delivering seamless speed reduction and clutching.

Description

Marine Gearbox 135 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume, light in weight and easy in dismantle & reassemble and maintain.

Main Data

RPM input 800rpm – 1800rpm
Center distance 225mm
Rated propulsion 140 kN
Reduction ratio 5.57 5.68 5.93 6.43 6.86 7.33 7.84 8.4
Transmitting capacity 0.625 0.588 0.551 0.515 0.48
Overall dimensions 1056mm * 1280mm * 1425mm
Net dry weight 2000 kg
Flywheel (flange) SAE 16 inch, 18 inch, 21 inch
Flywheel (bell) housing SAE 0# 00#
Options/comments Mechanical or electrical remote control device
Maximum engine power 1530hp 1800rpm

Application

Marine Gearbox 135A is suitable for small fishing, transport, tug, traffic and passenger boats.
