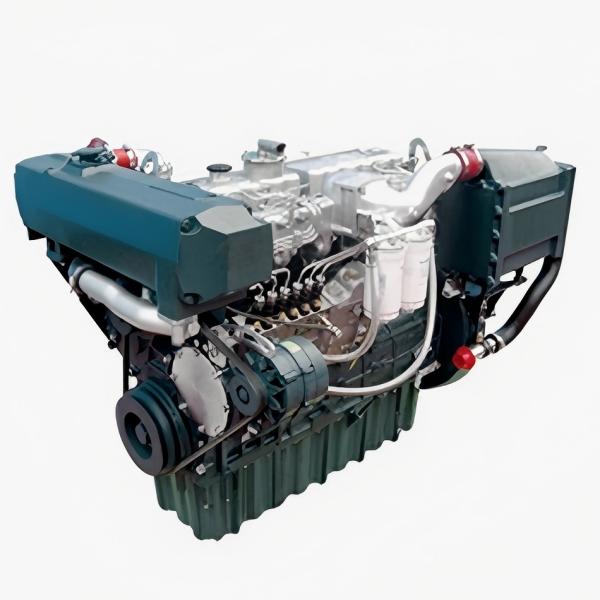

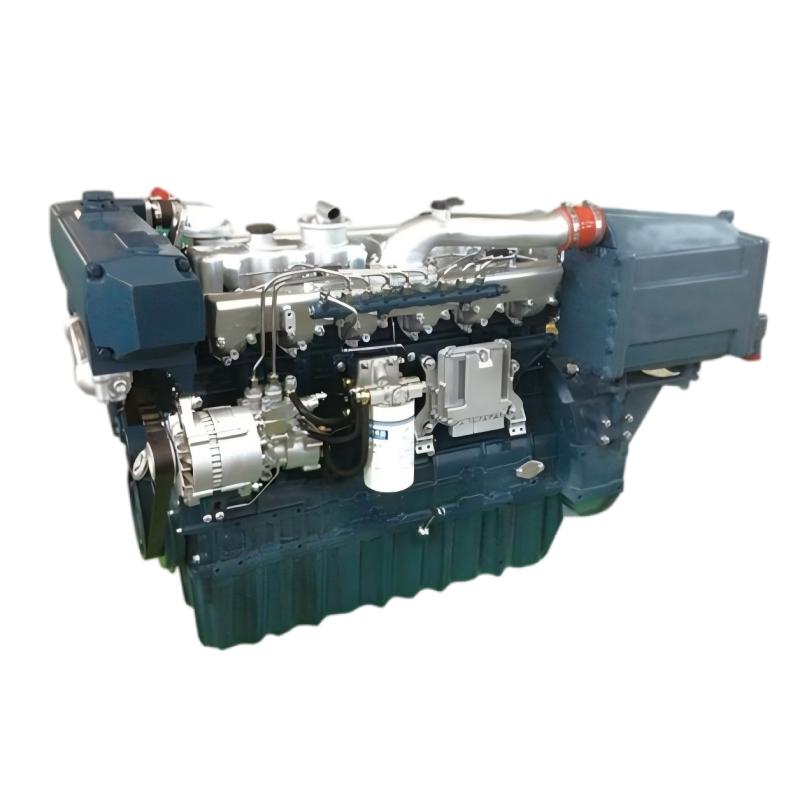

YUCHAI YC6A Series Marine Diesel Engine

    Engineered with German & Japanese marine technology, the YC6A delivers 150–220 PS for small vessels and marine generator sets.

    ●
    German & Japanese Technology Co-developed with leading marine engine expertise from Germany and Japan.
    ●
    10,000+ Hour Overhaul Life Alloy iron block & head, integral crankshaft, sliding bearings — built to last.
    ●
    Superior Fuel Efficiency ≤198 g/kW·h — far outperforms domestic equivalents with necking combustion & AD high-pressure pump.
    ●
    50% Less Oil Consumption Proprietary piston ring seal & valve seal tech cuts lube oil use by over 50% vs. domestic peers.
    ●
    Compact & Lightweight Small volume, light weight — ideal for small vessels and 90–120 kW marine gensets.
    ●
    ZC, CCS & IMO Certified Meets international classification standards for commercial and fishing vessel applications.
Request Quote Contact Us

Product Description

The YUCHAI YC6A series marine diesel engine, developed with advanced German and Japanese marine technology, represents a new generation of marine power solutions. Featuring high-strength alloy castings for the cylinder block and head, it ensures superior rigidity and reliability. With turbocharged and inter-cooled intake, necking combustion technology, and AD-type high-pressure fuel pumps, it offers efficient combustion and significantly lower fuel consumption compared to domestic products. Ideal for small ships, fishing vessels, and 90-120kW marine generator sets, the YC6A series delivers exceptional performance and durability.

YC6A Technical Data

Model YC6A200L-C20 YC6108ZLCB YC6A170C
Type Vertical, In-line, Water-cooled, 4-Stroke
Intake way Turbocharged & Inter-cooled
No. of cylinders-Bore × Stroke (mm) 6-108 × 132
Displacement (L) 7.255
Compression ratio 17.5:1
Continuous power/speed (kW(Ps)/r/min) 145 (200) /1500 112 (152) /1500 125 (170) /1500
One-hour power/speed (kW(Ps)/r/min) 159.5 (220) /1500 123.2 (170) /1548 137.5 (185) /1548
Min. specific fuel consumption (g/kW·h) ≤198
Specific oil consumption (g/kW·h) ≤0.5
Engine oil capacity (L) 22
The Min. steady operation speed (r/min) / ≤675
Crankshaft rotation direction (see from power output end) Anticlockwise
Starting way Electrical
Net weight (kg) 750 770
Overall dimensions (L×W×H) (mm) 1340 × 870 × 1100 1416 × 921 × 1092
Matched reduction gearbox or marine gen-set 120kW 120C, 135, MB242 etc.
Certificate ZC, CCS, IMO ZC, CCS

YC6A Technical Data

Model YC6A190C YC6A195C YC6A220C
Type Vertical, In-line, Water-cooled, 4-Stroke
Intake way Turbocharged & Inter-cooled
No. of cylinders-Bore × Stroke (mm) 6-108 × 132
Displacement (L) 7.255
Compression ratio 17.5:1
Continuous power/speed (kW(Ps)/r/min) 140 (190) /1800 145 (197) /2300 162 (220) /2300
One-hour power/speed (kW(Ps)/r/min) 154 (210) /1858 159.5 (220) /2374 178.2 (240) /2374
Min. specific fuel consumption (g/kW·h) ≤198
Specific oil consumption (g/kW·h) ≤0.5
Engine oil capacity (L) 28
The Min. steady operation speed (r/min) ≤810 ≤1035
Crankshaft rotation direction (see from power output end) Anticlockwise
Starting way Electrical
Net weight (kg) 770
Overall dimensions (L×W×H) (mm) 1416 × 921 × 1092
Matched reduction gearbox HCQ138, 120C, 135, MB242 etc.
Certificate ZC, CCS, IMO

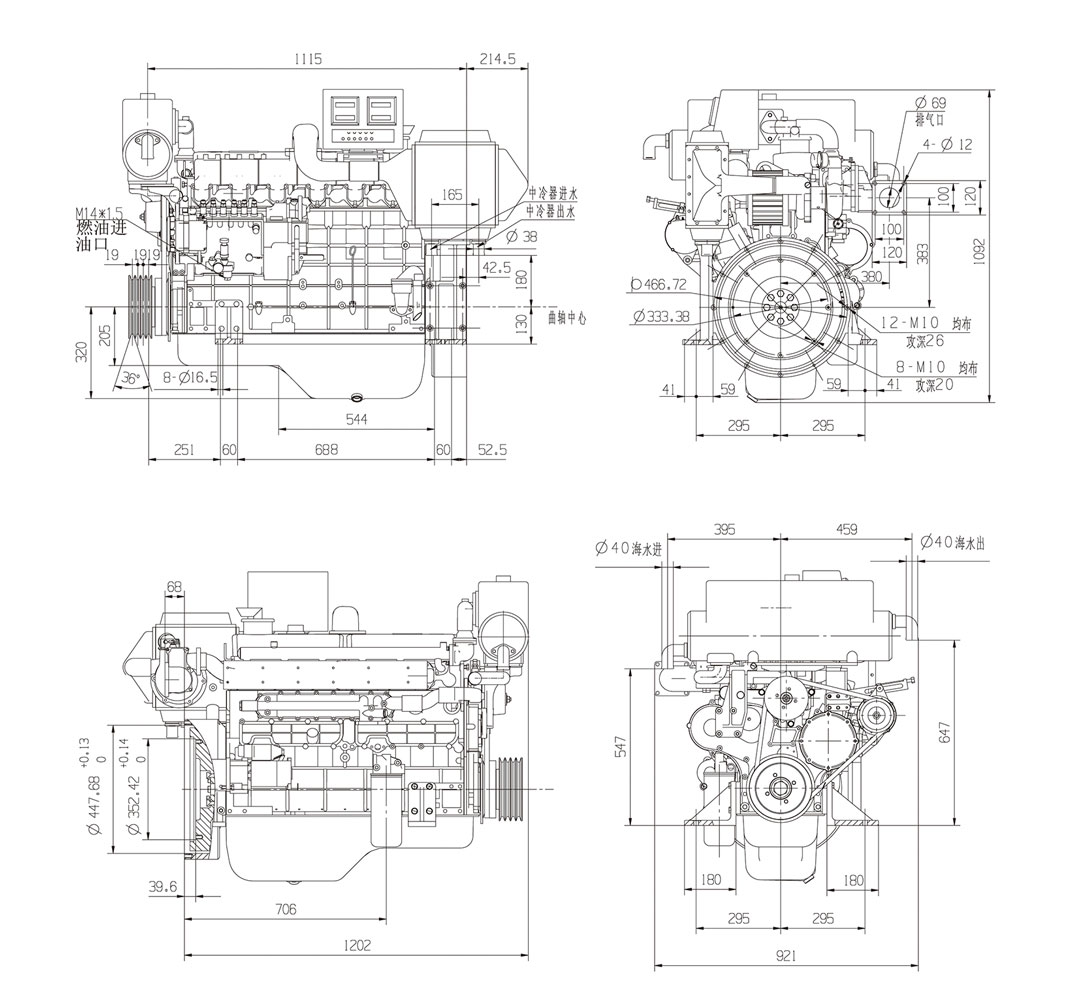

YC6A Installation Drawing
