Product Description

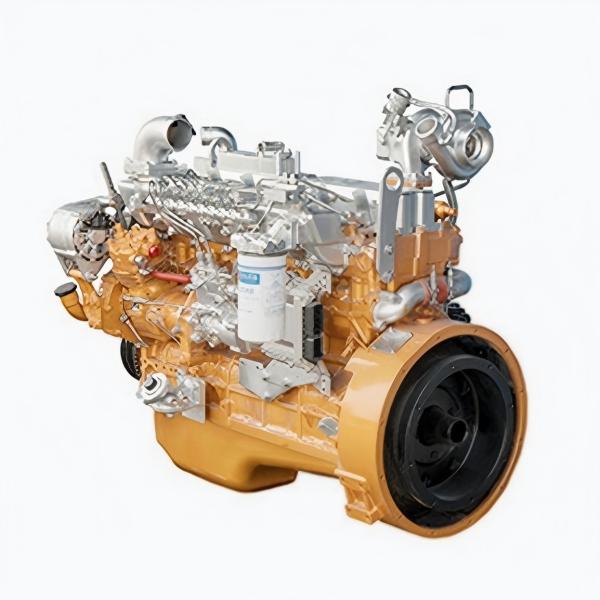

The YC6J series marine diesel engines, developed with advanced German and Japanese marine technology, are designed for small ships and fishing vessels. These engines feature high-strength alloy-cast cylinder blocks and heads, ensuring rigidity and reliability. With an integral crankshaft and sliding bearings, they offer a compact design, light weight, and high durability, with an overhaul period exceeding 10,000 hours. The necking combustion technology, AD-type high-pressure fuel pump, and low-inertia injectors ensure efficient combustion and superior fuel economy, outperforming domestic competitors. Yuchai’s proprietary piston ring and valve seal technologies reduce lubricating oil consumption by over 50%. Ideal for small vessels and 50-100kW marine generator sets.
YC6J Technical Data
| Model | YC6105CA | YC6105CA1 |
|---|---|---|
| Type | Vertical, In-line, Water-cooled, 4-Stroke | |
| Intake way | Natural aspirated | |
| No. of cylinders-Bore × Stroke (mm) | 6-105 × 125 | |
| Displacement (L) | 6.494 | |
| Compression ratio | 16.5:1 | |
| Continuous power/speed (kW(Ps)/r/min) | 53 (72) /1500 | 66 (90) /2000 |
| One-hour power/speed (kW(Ps)/r/min) | 58.3 (80) /1548 | 72.6 (100) /2064 |
| Min. specific fuel consumption (g/kW·h) | ≤200 | |
| Specific oil consumption (g/kW·h) | ≤0.5 | |
| Engine oil capacity (L) | 15-17 | |
| The Min. steady operation speed (r/min) | ≤675 | ≤900 |
| Crankshaft rotation direction (see from power output end) | Anticlockwise | |
| Starting way | Electrical | |
| Net weight (kg) | 700 | |
| Overall dimensions (L×W×H) (mm) | 1300 × 735 × 1025 | |
| Matched reduction gearbox | HC65, 120C, MB170 etc. | |
| Certificate | ZC, CCS | |

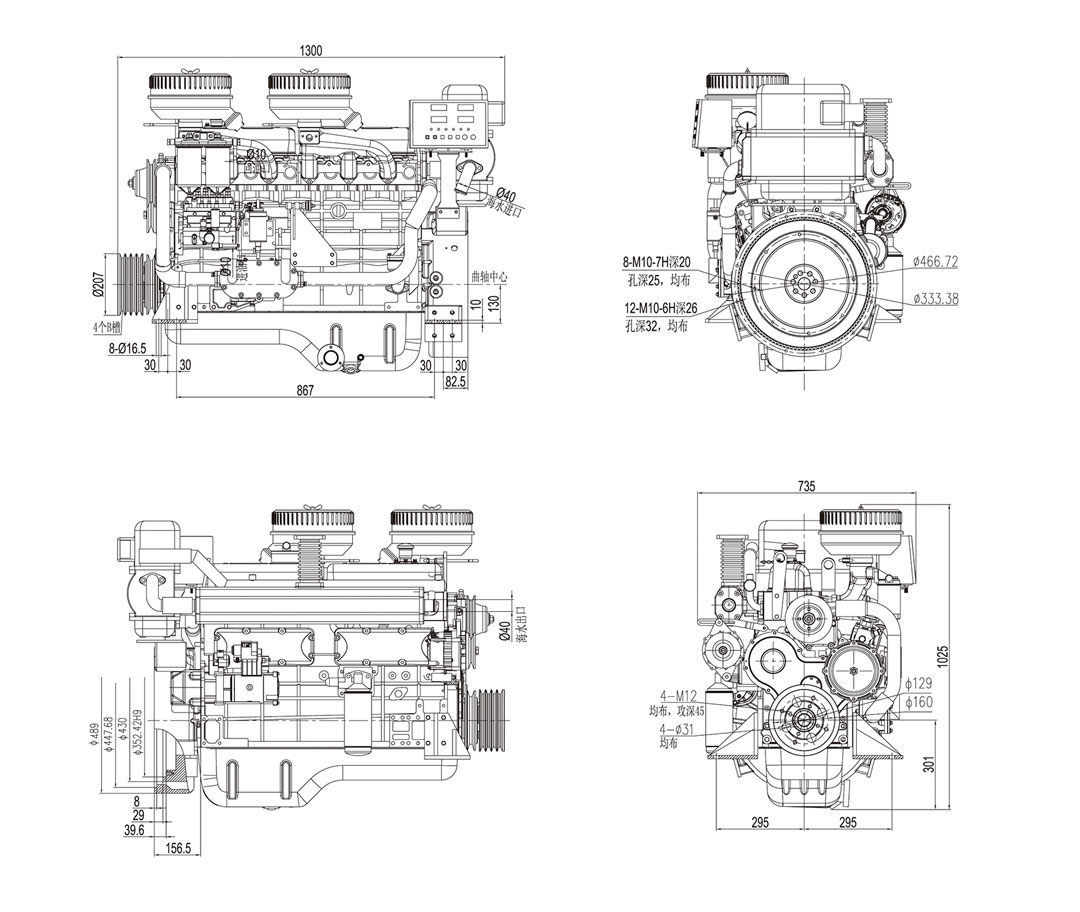

YC6J Installation Drawing
