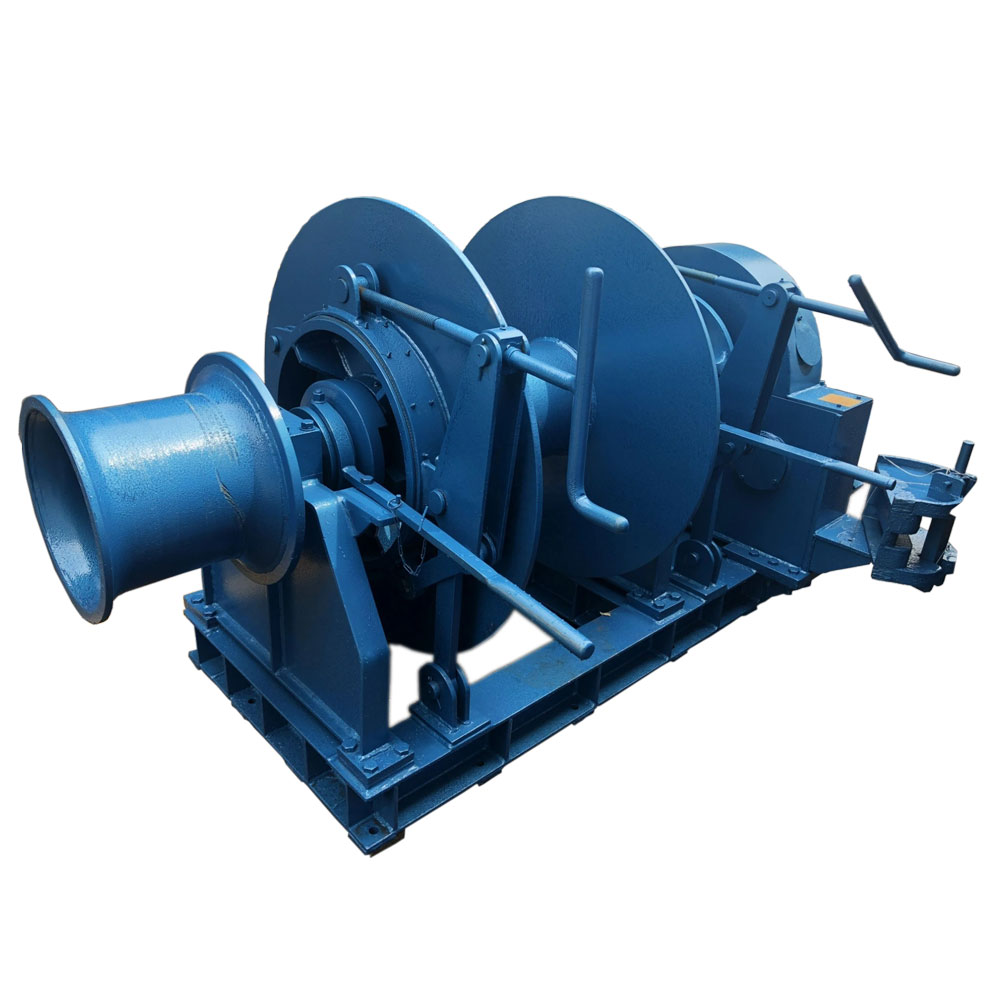

Desciption
1、Available for Chain Size Dia.12.5mm~90mm AM2& AM3;
2、Drive: Electric Motor;
3、Structure: Single gypsy wheel with one warping head;
4、Clutch: Manually operated Jaw Clutch;
5、Brake: Manually operated Band Brake;
6、Control: Local;
7、With Master controller& Electric Cabinet;
8、Painting: As per customer’s requirement;
9、Ship Class certification: BV, RINA, CCS, LR, GL-DNV, ABS, IRS, CR; Working load calculation formula(when anchorage depth≤82.5m): For grade 1 anchor chain:F1=37.5d2; For grade 2 anchor chain:F2=42.5d2; For grade 3 anchor chain:F3=47.5d2; Here,’d’ is the dia. Of anchor chain;
Overload calculation formula:1.5Xworking load;
Holding load calculation formula:0.45Xbreaking load of anchor chain;
Specification
| Specification data table | ||||||||||
| Model | Chain slze (mm) |
Working load(KN) | Overload (KN) | Holding load (KN) | Workinc speed (M/Min.) |
Warping head load (KN) |
Motor Power (KW) |
|||
| AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | |||||
| DM-12.5 | 12.5 | 6.6 | 7.4 | 10.0 | 11.1 | 41.4 | 59.4 | ≥9 | 3 | 3/1.2 |
| DM-14 | 14 | 8.3 | 9.3 | 12.5 | 14.0 | 52.2 | 74.3 | ≥9 | 4 | 4.3/1.7 |
| DM-16 | 16 | 10.9 | 12.2 | 16.3 | 18.2 | 67.5 | 97.2 | ≥9 | 4 | 4.3/1.7 |
| DM-17.5 | 17.5 | 13.0 | 14.5 | 19.5 | 21.8 | 80.6 | 115.2 | ≥9 | 8 | 4.3/1.7 |
| DM-19 | 19 | 15.3 | 17.1 | 23.0 | 25.7 | 95.0 | 135.5 | ≥9 | 10 | 8.5/3.5 |
| DM-20.5 | 20.5 | 17.9 | 20.0 | 26.8 | 29.9 | 109.8 | 157.1 | ≥9 | 10 | 8.5/3.5 |
| DM-22 | 22 | 20.6 | 23.0 | 30.9 | 34.5 | 126.0 | 180.5 | ≥9 | 15 | 8.5/3.5 |
| DM-24 | 24 | 24.5 | 27.4 | 36.7 | 41.0 | 149.4 | 214.2 | 29 | 20 | 8.5/3.5 |
| DM-26 | 26 | 28.7 | 32.1 | 43.1 | 48.2 | 175.1 | 250.2 | ≥9 | 20 | 8.5/3.5 |
| DM-28 | 28 | 33.3 | 37.2 | 50.0 | 55.9 | 202.1 | 288.9 | 29 | 20 | 11/11/7.5 |
| DM-30 | 30 | 38.3 | 42.8 | 57.4 | 64.1 | 231.3 | 330.8 | ≥9 | 30 | 11/11/7.5 |
| DM-32 | 32 | 43.5 | 48.6 | 65.3 | 73.0 | 262.4 | 374.9 | ≥9 | 30 | 16/16/11 |
| DM-34 | 34 | 49.1 | 54.9 | 73.7 | 82.4 | 294.8 | 421.7 | 29 | 30 | 16/16/11 |
| DM-36 | 36 | 55.1 | 61.6 | 82.6 | 92.3 | 329.4 | 472.5 | ≥9 | 30 | 16/16/11 |
| DM-38 | 61.4 | 68.6 | 92.1 | 102.9 | 365.4 | 522.0 | ≥9 | 40 | 22/22/16 | |
| DM-40 | 40 | 68.0 | 76.0 | 102.0 | 114.0 | 403.2 | 576.0 | ≥9 | 40 | 22/22/16 |
| DM-42 | 42 | 75.0 | 83.8 | 112.5 | 125.7 | 441.5 | 630.0 | 29 | 50 | 22/22/16 |
| DM-44 | 44 | 82.3 | 92.0 | 123.4 | 137.9 | 486.0 | 693.0 | 29 | 50 | 30/30/22 |
| DM-46 | 46 | 89.9 | 100.5 | 134.9 | 150.8 | 526.5 | 756.0 | ≥9 | 50 | 30/30/22 |
| DM-48 | 48 | 97.9 | 109.4 | 146.9 | 164.2 | 571.5 | 814.5 | ≥9 | 50 | 30/30/22 |
| DM-50 | 50 | 106.3 | 118.8 | 159.4 | 178.1 | 616.5 | 882.0 | ≥9 | 50 | 30/30/22 |
| DM-52 | 52 | 114.9 | 128.4 | 172.4 | 192.7 | 666.0 | 949.5 | ≥9 | 60 | 30/30/22 |
| DM-54 | 54 | 123.9 | 138.5 | 185.9 | 207.8 | 715.5 | 1021.5 | ≥9 | 60 | 30/30/22 |
| DM-56 | 56 | 133.3 | 149.0 | 199.9 | 223.4 | 769.5 | 1093.5 | ≥9 | 60 | 45/45/30 |
| DM-58 | 58 | 143.0 | 159.8 | 214.5 | 239.7 | 814.5 | 1170.0 | ≥9 | 60 | 45/45/30 |
| DM-60 | 60 | 153.0 | 171.0 | 229.5 | 256.5 | 873.0 | 1246.5 | 29 | 80 | 45/45/30 |
| DM-62 | 62 | 163.4 | 182.6 | 245.1 | 273.9 | 927.0 | 1323.0 | ≥9 | 80 | 45/45/30 |
| DM-64 | 64 | 174.1 | 194.6 | 261.1 | 291.8 | 985.5 | 1408.5 | 80 | 45/45/30 | |
| DM-66 | 66 | 185.1 | 206.9 | 277.7 | 310.4 | 1039.5 | 1485.0 | ≥9 | 100 | 45/45/30 |
| DM-68 | 68 | 196.5 | 219.6 | 294.8 | 329.5 | 1102.5 | 1575.0 | ≥9 | 100 | 45/45/30 |
| DM-70 | 70 | 208.3 | 232.8 | 312.4 | 349.1 | 1161.0 | 1660.5 | 29 | 100 | 60/60/45 |
| DM-73 | 73 | 226.5 | 253.1 | 339.7 | 379.7 | 1255.5 | 1795.5 | ≥9 | 100 | 60/60/45 |
| DM-76 | 76 | 245.5 | 274.4 | 368.2 | 411.5 | 1354.5 | 1935.0 | 29 | 125 | 60/60/45 |
| DM-78 | 78 | 258.6 | 289.0 | 387.9 | 433.5 | 1422.0 | 2025.0 | ≥9 | 125 | 60160/45 |
| DM-81 | 81 | 278.8 | 311.6 | 418.3 | 467.5 | 1521.0 | 2169.0 | 29 | 140 | 75/75/36 |
| DM-84 | 84 | 299.9 | 335.2 | 449.8 | 502.7 | 1624.5 | 2322.0 | ≥9 | 140 | 75/75/36 |
| DM-87 | 87 | 321.7 | 359.5 | 482.5 | 539.3 | 1732.5 | 2475.0 | ≥9 | 150 | 85/85/64 |
| DM-90 | 90 | 344.3 | 384.8 | 516.4 | 577.1 | 1840.5 | 2628.0 | ≥9 | 150 | 85/85/64 |
