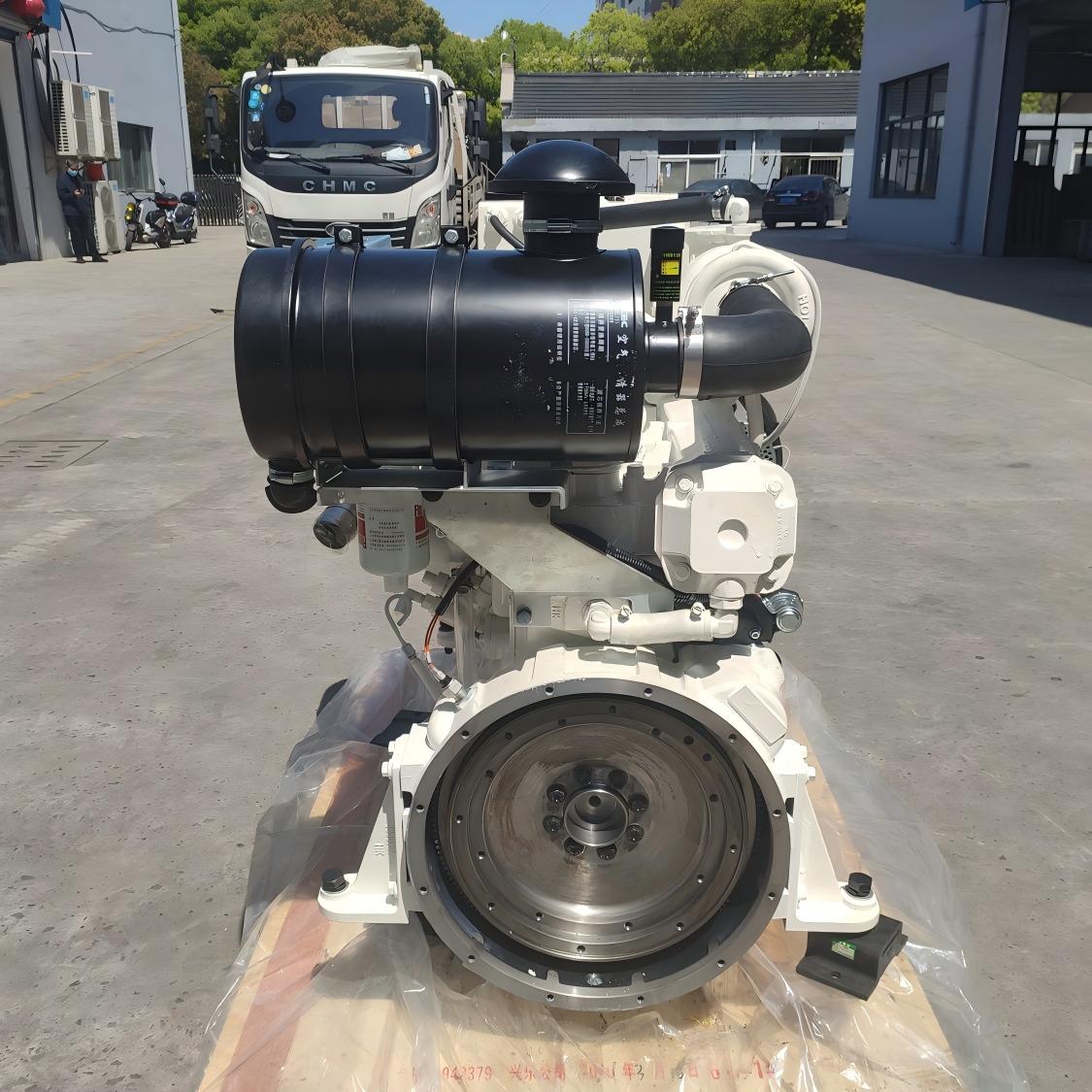

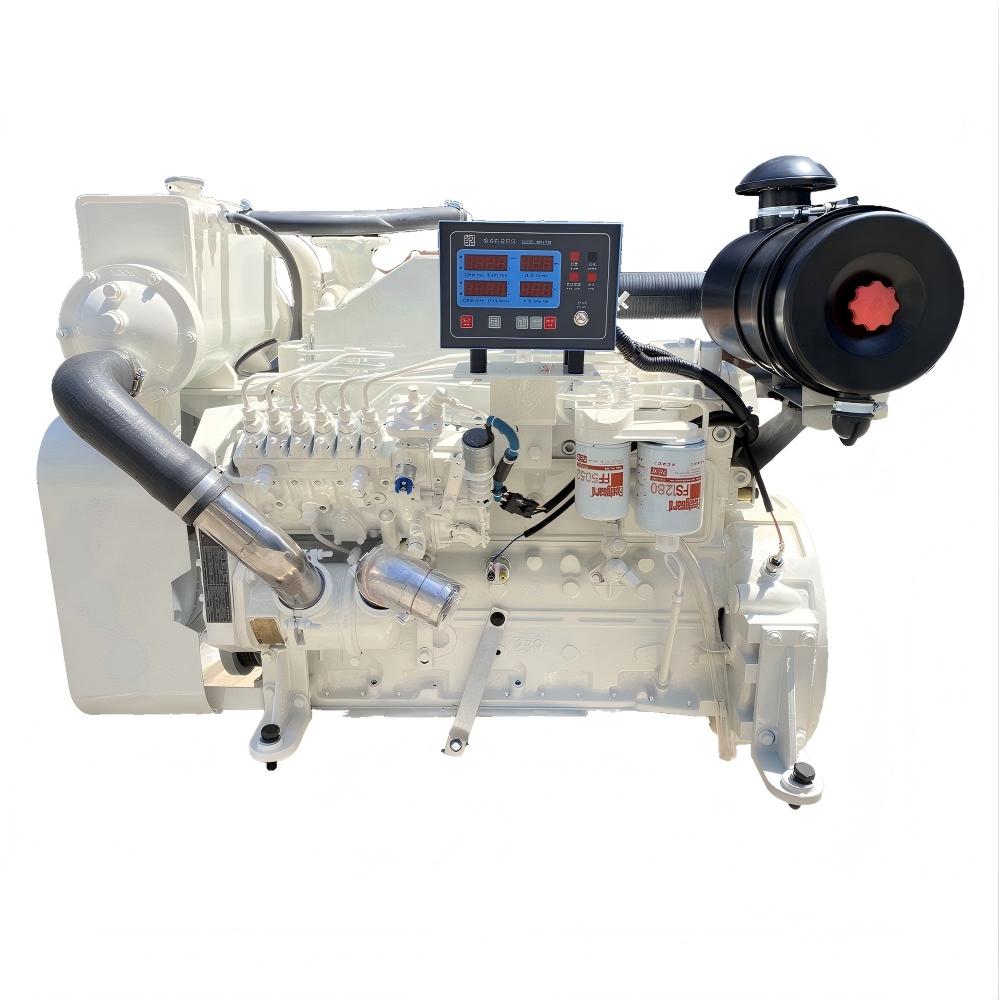

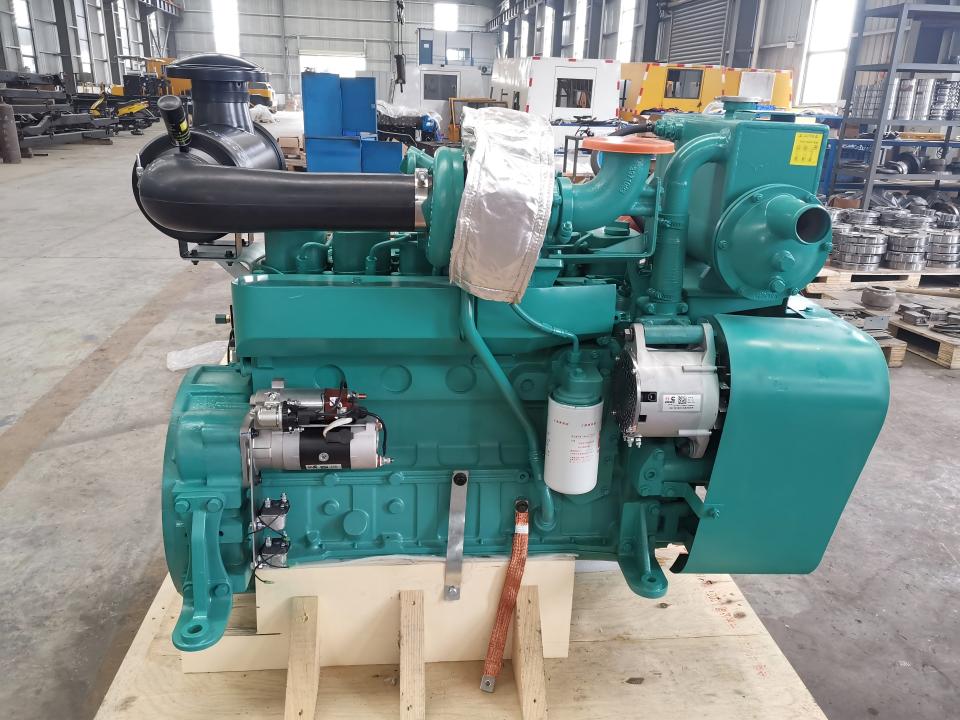

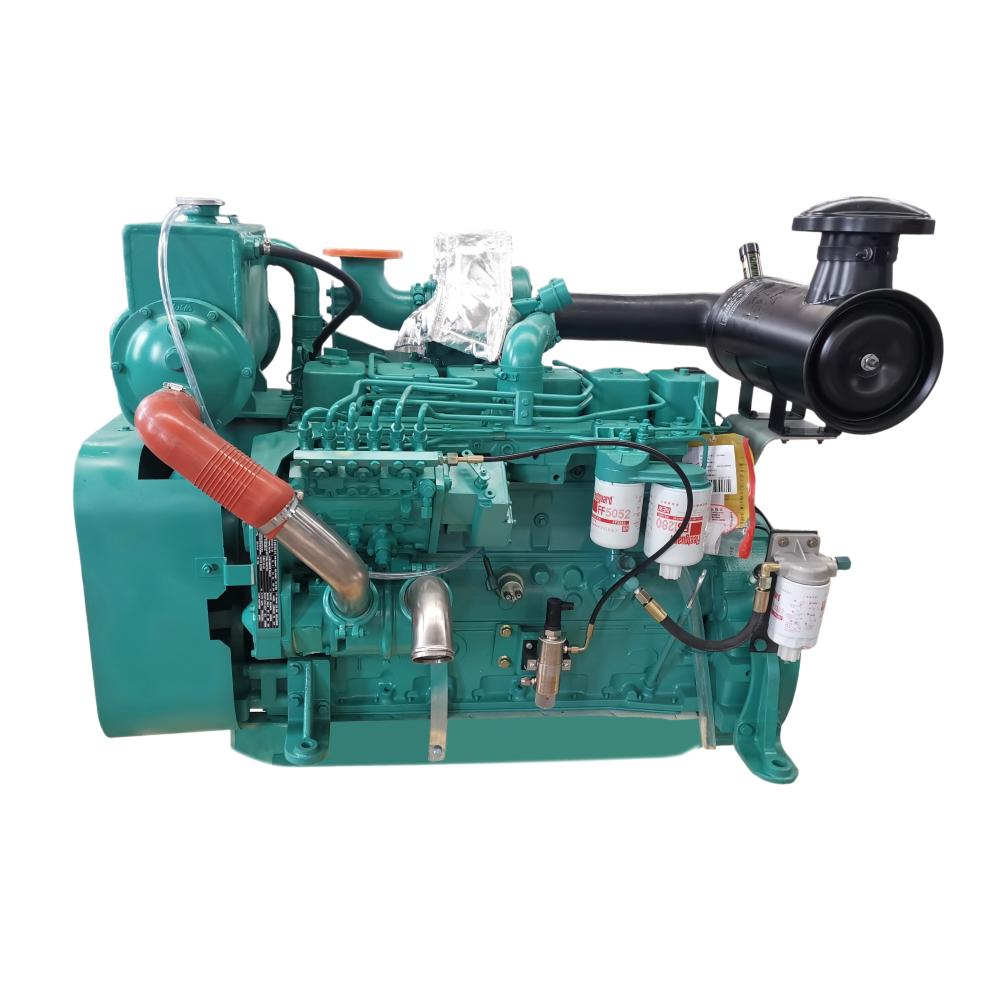

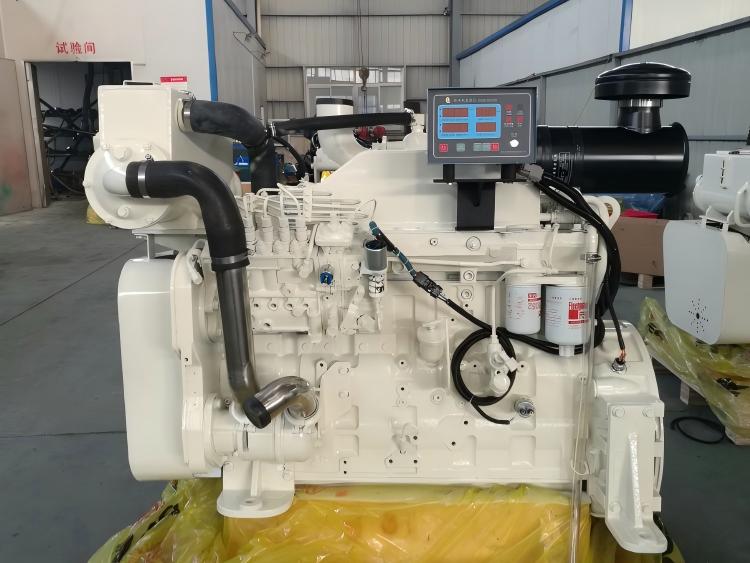

Cummins 6B Series 80KW~120KW Marine Diesel Engine

    Cummins 6B Series six-cylinder marine diesel engines delivering 80–120kW of dependable power for commercial and recreational vessels.

    ●
    80kW to 120kW Output Wide power range from 80kW@1500RPM to 120kW@1800RPM to suit diverse vessel requirements.
    ●
    Six-Cylinder Inline Design 5.9L inline-6 configuration delivers smooth, balanced power with minimal vibration.
    ●
    Turbocharged & Aftercooled Options Available in turbocharged (BT) and turbocharged-aftercooled (BTA/BTAA) variants for optimized output.
    ●
    Proven Cummins Reliability Backed by Cummins engineering heritage for long-term dependability in marine environments.
    ●
    Genset & Propulsion Ready GM models optimized for generator sets; M models configured for direct propulsion applications.
    ●
    Compact & Lightweight Build 620kg with 1310×960×1340mm footprint for easy installation in tight engine rooms.
Request Quote Contact Us

Product Description

This high – power marine diesel engine, with a power range of 80KW to 120KW, is designed with a robust 6 – cylinder configuration. It features a displacement of 5.9 liters, providing ample power for various marine applications. The turbocharged design enhances its performance, enabling it to deliver reliable power even under demanding conditions.

With different models available, each with specific power and RPM settings, it can meet diverse needs. Its compact yet sturdy structure ensures easy installation and long – term durability on board ships, making it a great choice for marine propulsion and power generation.

Technical Specifications

Engine model: KW/RPM Displacement(L) Bore*Stork
mm*mm		 Aspiration No. of
Cylinders:		 Dimension(mm) Weight
KG
6BT5.9-GM83 80@1500 5.9 102×120 Turbocharged 6 1310*960*1340 620
6BT5.9-GM83 83@1500
6BT5.9-GM100 100@1800
6BTA5.9-GM100 100@1500
6BTA5.9-GM120 120@1800
6BTAA5.9-GM115 115@1500
6BT5.9-M120 90@2200
6BTA5.9-M150 110@2200
6BTA5.9-M180 132@2200
