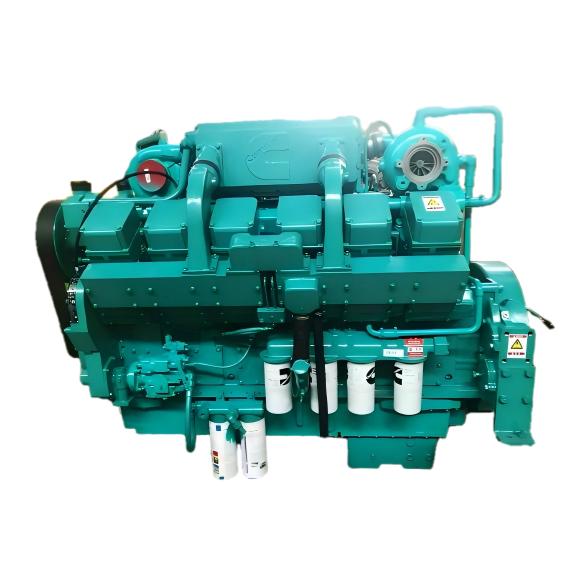

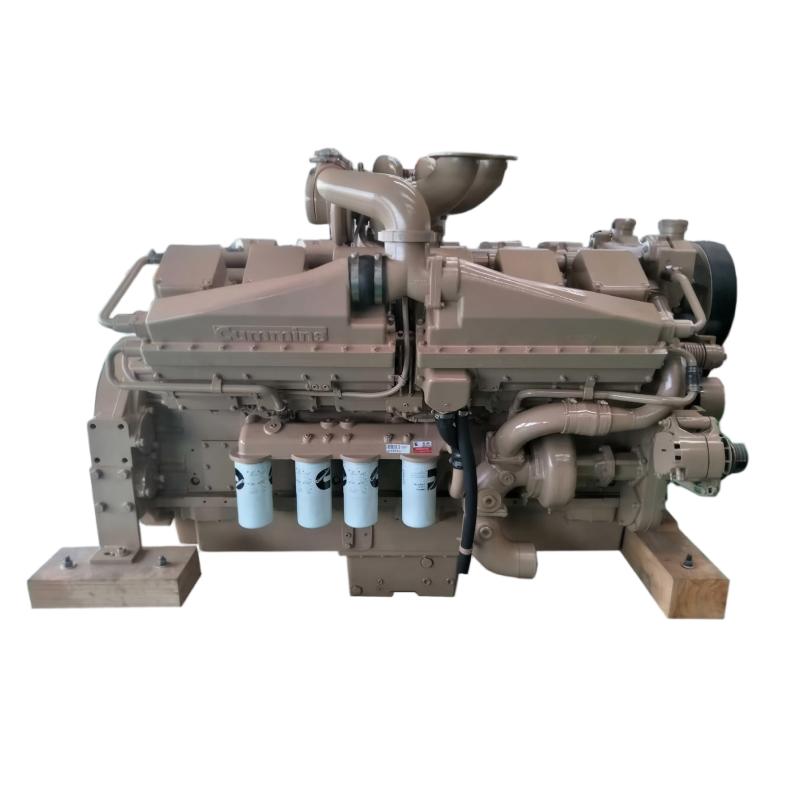

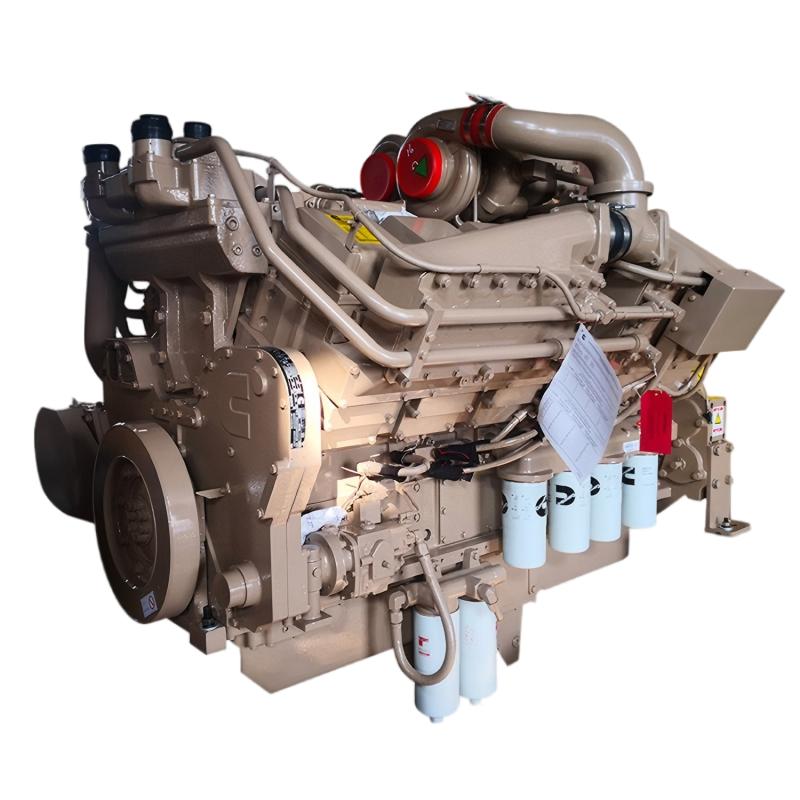

Cummins KTA38 Series Marine Diesel Engine

    Cummins KTA38-M V12 marine diesel engine delivering 800–1200HP of massive power with turbocharged-aftercooled performance.

    ●
    800HP to 1200HP Output Massive power range from 800HP to 1200HP at 1500/1800RPM for heavy commercial vessels.
    ●
    V12 Turbocharged & Intercooled 38L V12 engine with 159×159mm bore×stroke, turbocharged and intercooled for peak performance.
    ●
    3364N.m Peak Torque Exceptional torque output of 3364N.m for reliable propulsion under extreme loads.
    ●
    Direct Injection Fuel System Direct injection pump with 156.3L/h fuel consumption at 13.9:1 compression ratio.
Request Quote Contact Us

Product Description

The Cummins KTA38 Series marine diesel engine is a high-performance powerhouse designed for demanding marine applications. With a V12 cylinder configuration and a 38L displacement, it delivers rated power from 800hp to 1200hp at 1500RPM/1800RPM. Featuring a turbocharged and intercooled aspiration system, it ensures efficient combustion and optimal power output. The engine’s direct injection fuel system and water-cooled cooling method enhance its reliability and durability. With an electric start and a peak torque of 3364N.m, it’s ready to tackle heavy-duty marine tasks with ease.

Technical Specifications

Engine Model Cummins KTA38-M engine
Rated Power 800hp-1200hp
Rated Speed 1500RPM/1800RPM
Engine Type V-12 Cylinders,
Bore*Stroke(mm) 159mm*159mm
Displacement 38L
Compression Ratio 13.9:1
Peak Torque 3364N.m
Fuel Consumption 156.3L/h
Aspiration Type Turbocharged & Intercooled
Cooling Method Water Cooled
Start Type Electric Start
Fuel System Direct Injection Pump
Dimension 2844mm*1331mm*1909mm
Weight 4154kg
